Lesson 28 How to control a DC motor

4696

   In this lesson, we will carry out an interesting experiment by programming on the Micro:bit so as to control DC motor.

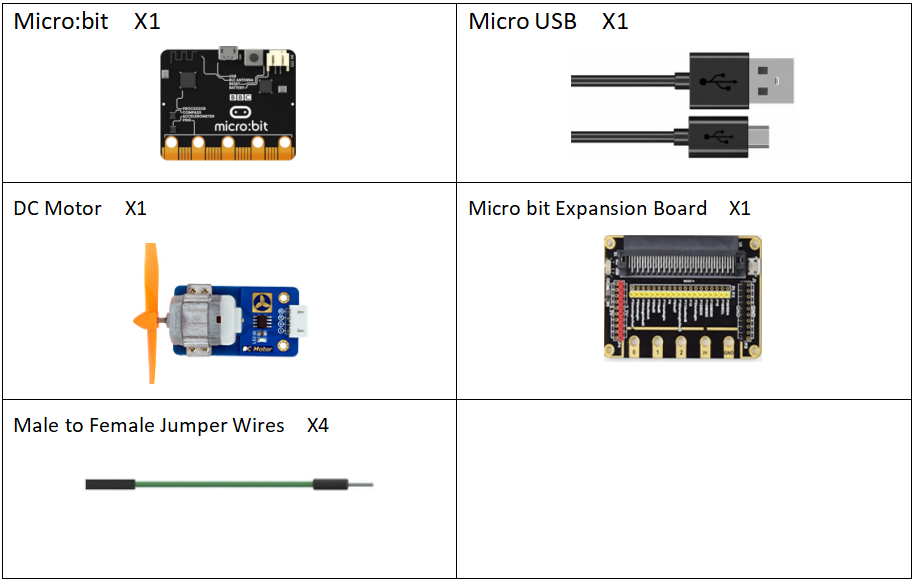

28.1 Components to be prepared



28.2 The introduction of the DC Motor

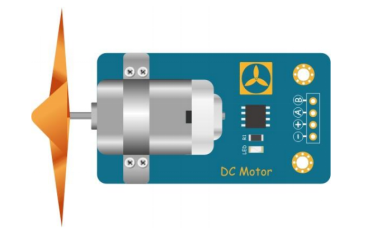

28.2.1 The DC Motor

A DC motor is a motor that converts DC electrical energy into mechanical energy. Because of its good speed regulation performance, it is widely used in electric towing. DC motors are divided into three categories: permanent magnet, other excitation, and self-excitation according to the excitation mode. Self-excitation is divided into three types: parallel excitation, series excitation, and compound excitation.

When DC power is supplied to the armature winding through the brush, the N-pole conductor on the surface of the armature can flow current in the same direction.According to the left-hand rule, the conductor will be subjected to counterclockwise torque; a part of the conductor under the S pole of the armature surface also flow current in the same direction, and the conductor will also be subjected to a counterclockwise moment according to the left-hand rule. In this way, the entire armature winding, that is, the rotor will rotate counterclockwise, and the input DC energy is converted into mechanical energy output on the rotor shaft. It is composed of stator and rotor, stator: base, main magnetic pole, commutation pole, and brush device, etc. rotor (armature): armature core, armature winding, commutator, rotating shaft and fan, etc.


28.2.2 Working principle of the DC Motor

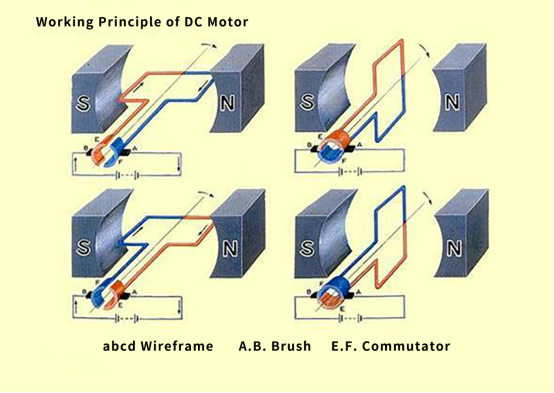

1.The DC power current flows along the positive pole of the power supply to the left brush. The brush and the commutator rub against each other. The current flows into the coil through the left commutator, flows out from the right side of the coil, and passes through the right commutator And the brush on the right flows back to the negative pole of the power supply, forming a closed loop.

2.Because the coil is in the magnetic field of the main magnetic pole, the coil will be subjected to the electromagnetic force. The two sides of the coil have different current directions (the current on the left flows inward and the right flows outward). Electromagnetic forces of the same magnitude and opposite directions, these two electromagnetic forces just form an electromagnetic torque. Under the pulling of the electromagnetic torque, the coil starts to rotate. In the DC motor, the coil is embedded in the rotor slot, and the motor starts to rotate.

3.The left and right commutator segments follow the shaft, and the brush is stationary. After one turn, the right coil reaches the left and the left coil reaches the right, but due to the presence of the commutator, it is now in the left coil The direction of the current flows in the same direction as the current changed by the coil on the left, so the direction of the electromagnetic force received does not change, and the same is true on the right. Therefore, from the perspective of space, the direction of the electromagnetic force received by the coil at the same position is always the same, which ensures the cyclic rotation of the motor.

4.But for a coil, because the magnetic field is different when the coil is turned to different positions, the electromagnetic force received by the coil is also constantly changing, so the coil turns unstable, suddenly and slowly. Therefore, you can install more coils to ensure that the coils are evenly and stably stressed.


28.3 Low level and high level


In circuit, the form of binary (0 and 1) is presented as low level and high level.

Low level is generally equal to ground voltage (0V). High level is generally equal to the operating voltage of components.

The low level of Micro:bit is 0V and high level is 3.3V, as shown below. When IO port on Micro:bit outputs high level, low-power components can be directly driven,like LED.



28.4 Circuit

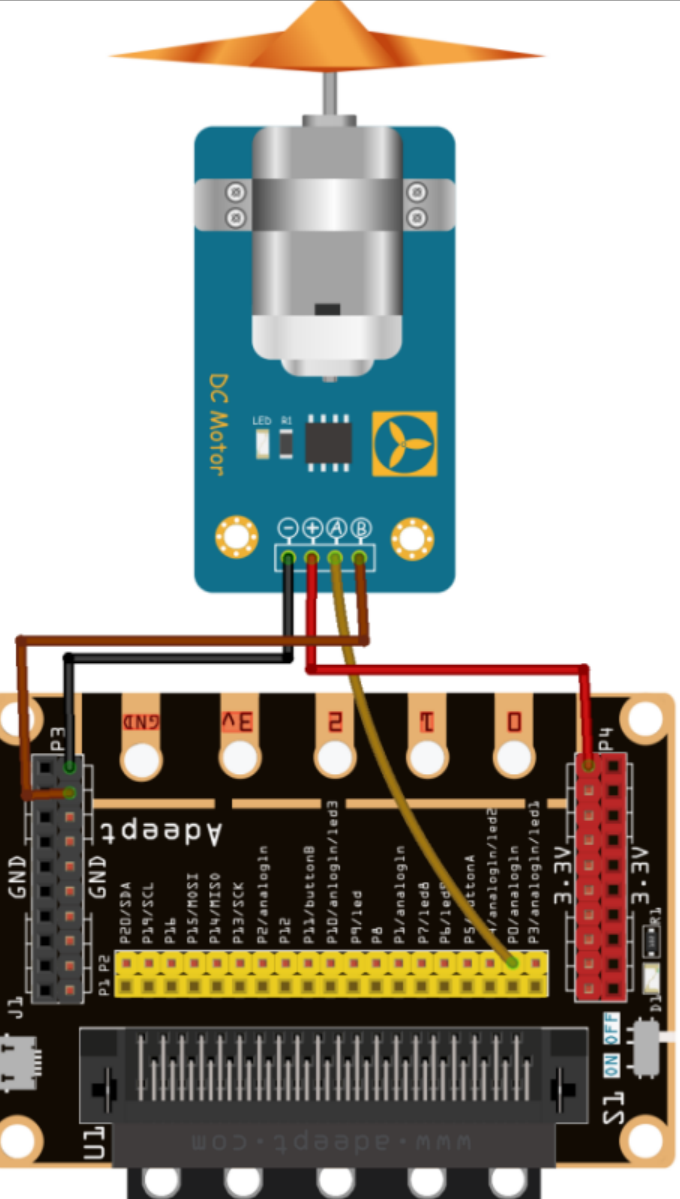

    You should connect the components according to the following circuit diagram, and view the pictures with the function “Zoom in”:




28.5 MakeCode programming

Next, we will use the online MakeCode Editor to complete the experiment in this lesson.


28.5.1 Start programming

(1) Log in to the website

1. You need to enter the URL in the address bar of Google Browser:

https://makecode.microbit.org/

2. After the website is successfully opened, the interface as shown below will appear:




(2) Import a project

1. In the HOME interface, click the "Import" button to import the external ".hex" file:



In the pop-up dialog box, select the "Import File", as shown in the following figure:




Click the "Choose File"

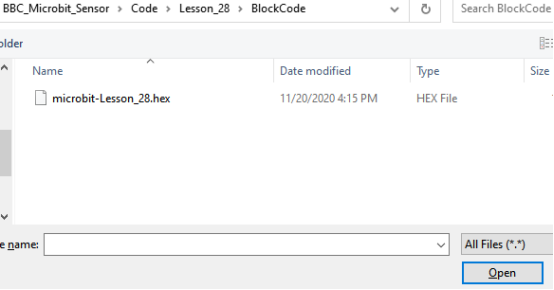

Find the code file for this lesson:

BBC_Microbit_Sensor\Code\Lesson_28\BlockCode

Select the file in ".hex" format and click the Open:

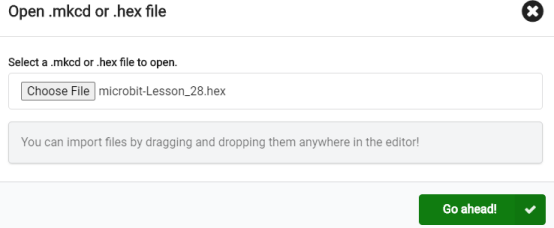

2. Notice whether the file has been loaded into the following window, and then click the "Go ahead!" button, as shown in the following figure:



3.You can see the following interface when successfully opening the file:



28.5.2 Run the program

1. After the program is written, connect micro:bit and PC with a Micro USB cable.

2. After micro:bit is connected to the computer, you need to first "Pair device". Click the image.png button on the right of image.png in the lower left corner, and then click the image.png option, as shown in the following figure:



Then click image.png in the lower right corner



Then the following dialog box will pop up, select image.png, and then click image.png



After the device is successfully paired, the image.png button changes to image.png

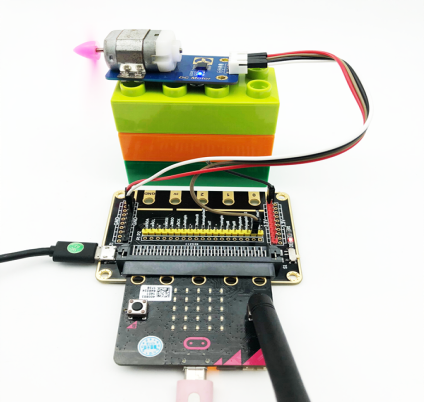

3. Start to download the program to Micro:bit, and click the image.png button. Generally, the program will be downloaded directly to the Micro:bit. After the download is completed, your Micro:bit will restart and run the program just downloaded. Press button A of the Micro:bit, and DC motor will rotate; press button B of the Micro:bit, and DC motor will stop rotating, as shown below:


[Note]

    1.If no experimental phenomenon has been detected after clicking the button image.png, you need to click the image.png button on the right of the image.png, and then click the image.png , and observe the Micro:bit again, as shown in the following figure:


2. If no experimental phenomenon is observed, you should check whether the USB cable of Micro:bit is successfully connected. If not, please download the program again.


  If you have problems, please send us an email: support@adeept.com


28.5.3 Learn the code program

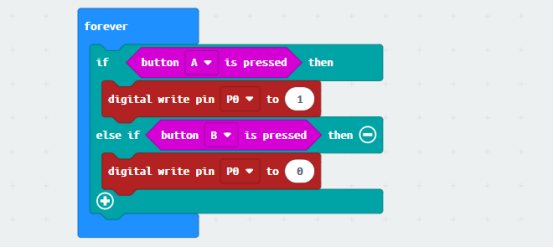

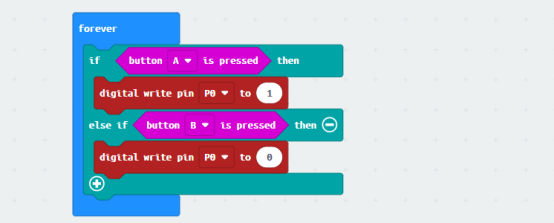

When you press the A button of the Micro:bit, the DC motor will spin; press the B button of the Micro:bit, the DC motor will stop spinning.



28.6 Python programming

28.6.1 Run the program

1.Connect micro:bit and PC with a Micro USB cable.

2. Open the Mu Editor installed on the computer, and click the button [Load] in the upper left corner to open the source code program of this lesson:

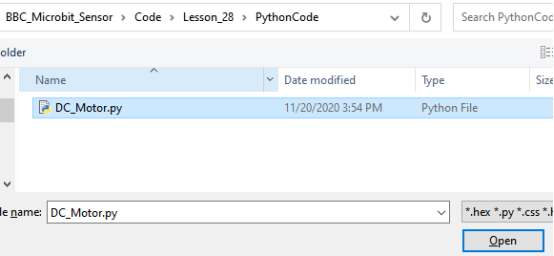

Find the code file for this lesson:

BBC_Microbit_Sensor\Code\Lesson_28\PythonCode

Select the file in ".py" format and click the Open:

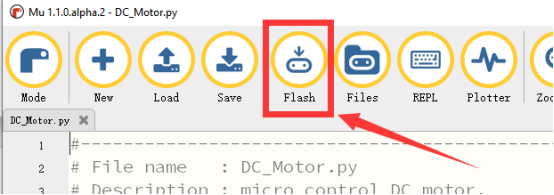

3.Click the button Flashand download the program to Micro:bit, as shown below:



4.When the download is successful, press button A of the Micro:bit, and DC motor will rotate; press button B of the Micro:bit, and DC motor will stop rotating, as shown below:



    If you have problems, please send us an email: support@adeept.com


28.6.2 Learn the code program


The source code is as follows:


9

10

11

12

13

14

15

16

from microbit import *



while True:

    if button_a.is_pressed():

        pin0.write_digital(1)

    elif button_b.is_pressed():

        pin0.write_digital(0)

    sleep(50)


(1)When you press the A button of the Micro:bit, the DC motor will spin; press the B button of the Micro:bit, the DC motor will stop spinning.
