Lesson 30 Intrusion Detection based on the PIR

2555

Overview

In this lesson, we will learn how to use Passive Infrared (PIR) sensor to detect the movement that happens nearby.


Components

- 1 * Arduino UNO

- 1 * USB Cable

- 1 * PIR Movement Sensor

- 1 * 220Ω Resistor

- 1 * LED

- Several jumper wires


Principle

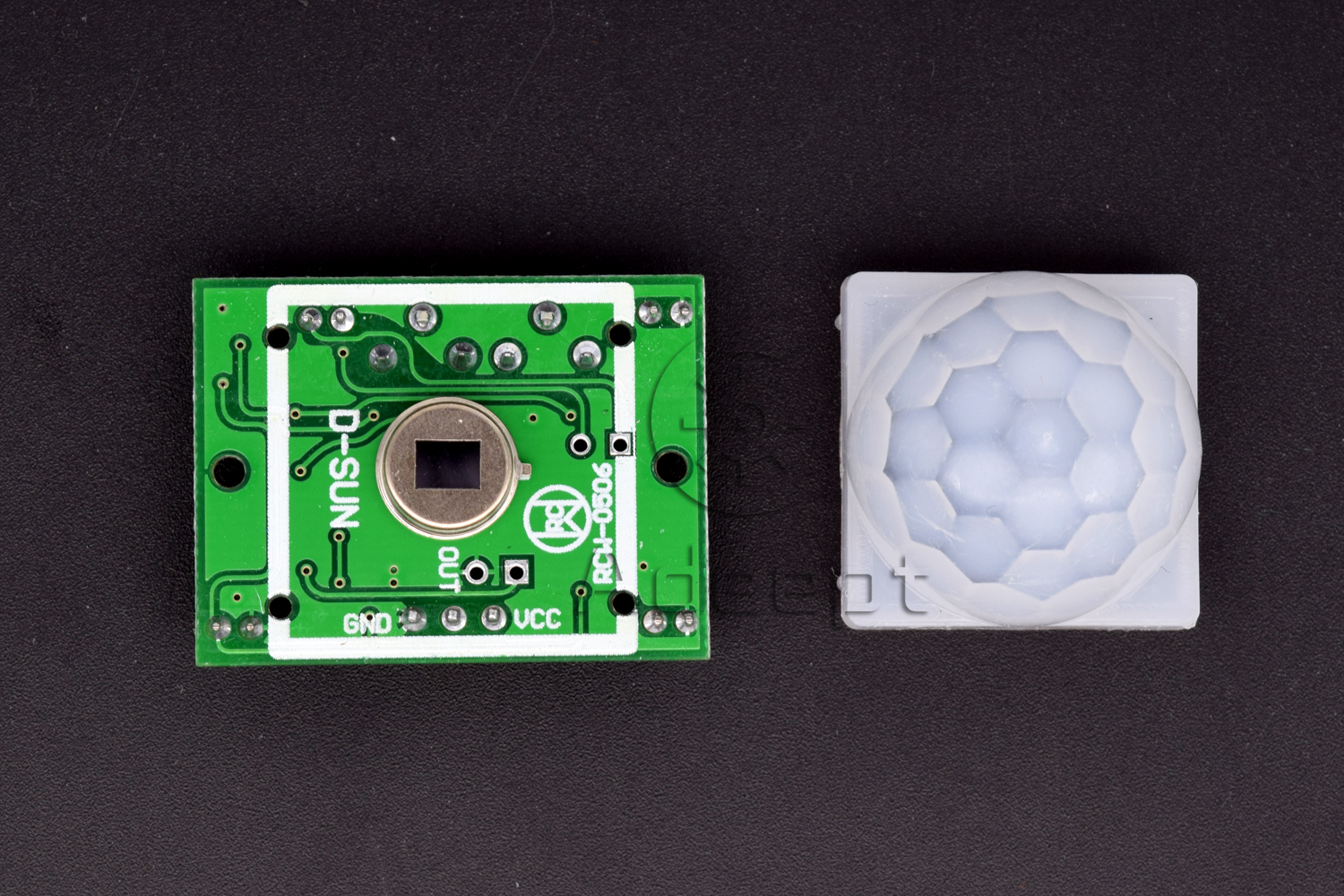

The sensor has pins marked “OUT”, “-”, and “+” (for Output, GVD, and +5V).

PIR sensors respond to heat and can be triggered by animals such as cats and dogs, as well as by people and other heat sources. The output pin of a PIR sensor will go HIGH when a motion is detected.


Procedures

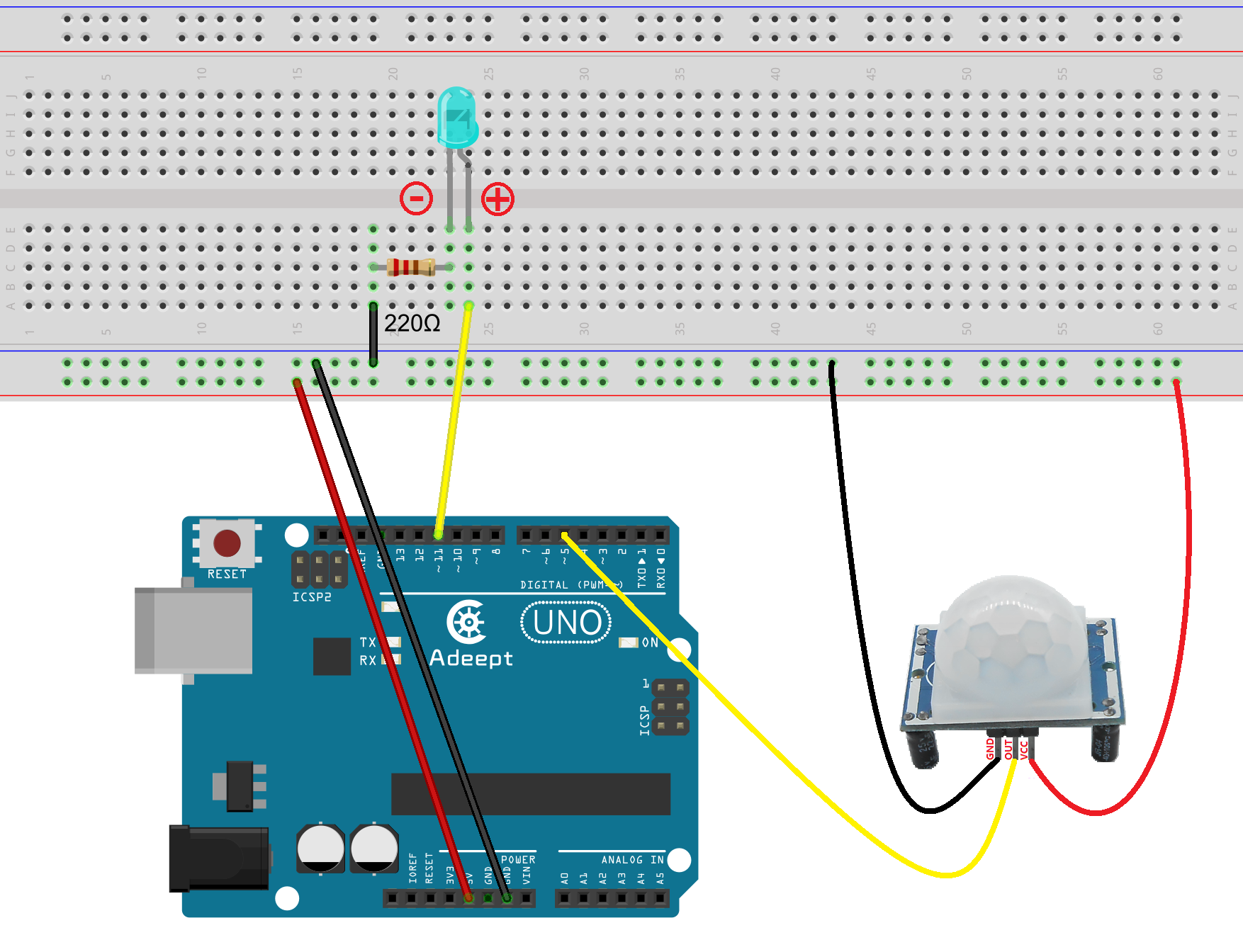

Step 1: Build the circuit



Step 2: Program

_30_PIR_movement.ino

/***********************************************************
File name: 30_PIR_movement.ino
Description: The LED will be turned on when the motion has been detected.
Website: www.adeept.com
E-mail: support@adeept.com
Author: Tom
Date: 2015/05/02
***********************************************************/

int ledpin=11;           //Set the digital 11 to LED
int PIRpin=5;           //Set the digital 5 to PIR
void setup() {
  // put your setup code here, to run once:
  pinMode( ledpin,OUTPUT);     //initialize the  led pin as output
  pinMode( PIRpin,INPUT);     //initialize the  PIR pin as input
}

void loop() {

  if(digitalRead(PIRpin)==LOW)//Detecting whether the body movement information
  {
    digitalWrite(ledpin,LOW);//LED OFF
  }else
  {
    digitalWrite(ledpin,HIGH);//LED ON
  }
}

Step 3: Compile the program and upload to Arduino UNO board

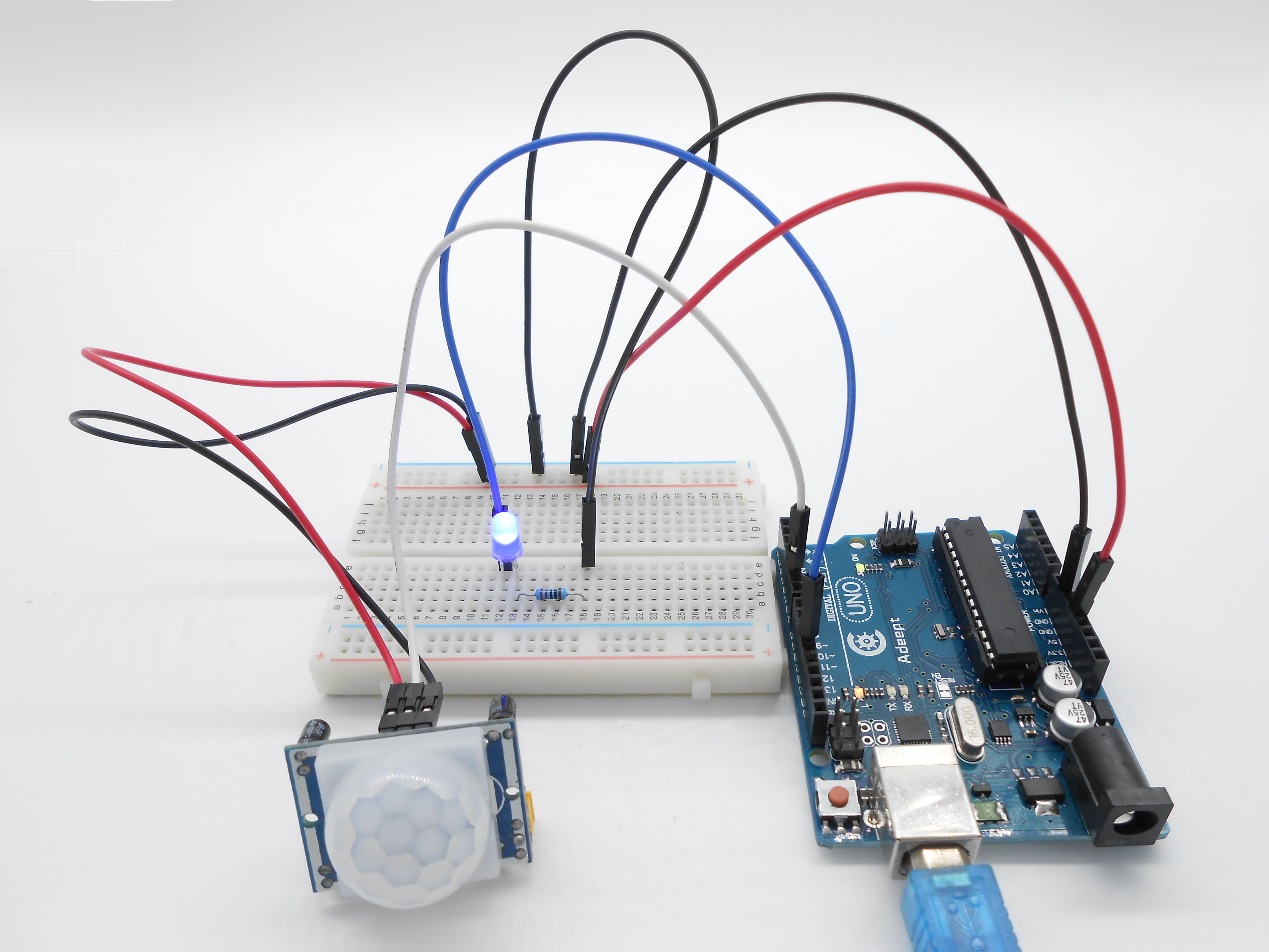

The LED will be turned on when any motion is detected.
