Lesson 16 Measure Temperature by a Thermistor

3428

Overview

In this lesson, we will learn how to use a thermistor to collect the temperature data by programming Arduino. The information what a thermistor collects is displayed on the LCD1602.


Components

- 1 * Arduino UNO

- 1 * USB Cable

- 1 * LCD1602

- 1 * 10kΩ Potentiometer

- 1 * 10kΩ Resistor

- 1 * Thermistor

- 1 * Breadboard

- Several jumper wires


Principle

A thermistor is a type of resistor whose resistance varies significantly with temperature, more so than in standard resistors. In this experiment we use an MF52 NTC-type thermistor, and it is usually used as a temperature sensor.

The key parameters of an MF52 thermistor:

B-parameter: 3470.

25 resistance: 10kΩ.

The relationship between the resistance of thermistor and temperature is as follows:



a.png: the resistance of the thermistor at temperature T1

Rthe nominal resistance of the thermistor at room temperature T2

e2.718281828459

Bone of the important parameters of thermistor

T1the Kelvin temperature that you want to measure

T2Under the condition of a 25 ℃ (298.15K) room temperature, the standard resistance of MF52 thermistor is 10K;

Kelvin temperature = 273.15 (absolute temperature) + degrees Celsius;

After transforming the above equation, we can get the following formula:



Procedures

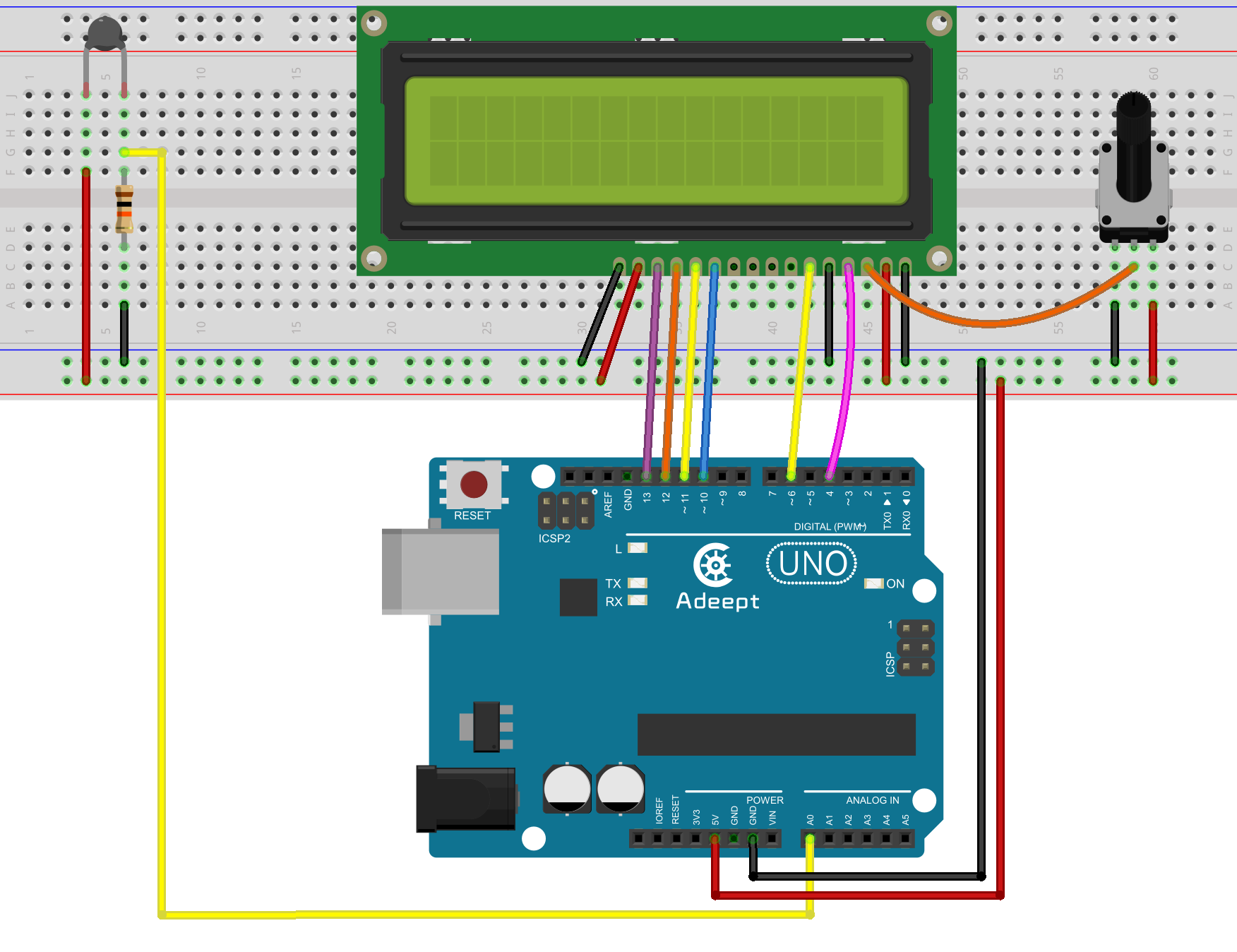

Step 1: Build the circuit



Step 2: Program

_16_thermistor.ino

/***********************************************************
File name: 16_thermistor.ino
Description: The information which a thermistor collects
             temperature is displayed on the LCD1602.
Website: www.adeept.com
E-mail: support@adeept.com
Author: Tom
Date: 2015/05/02
***********************************************************/

#include <LiquidCrystal.h>

int tim = 50;                       //the value of delay time
// initialize the library with the numbers of the interface pins
LiquidCrystal lcd(4, 6, 10, 11, 12, 13);
int thermistorPin = 0;           // thermistor connected to analog pin 3

void setup()
{
  lcd.begin(16, 2);    // set up the LCD's number of columns and rows:
  lcd.clear();         //Clears the LCD screen and positions the cursor in the upper-left corner
}

void loop()
{
   float a = analogRead(thermistorPin);
  //the calculating formula of temperature
  float resistor = (1023.0*10000)/a-10000;
  float tempC = (3435.0/(log(resistor/10000)+(3435.0/(273.15+25)))) - 273.15;

  lcd.setCursor(0, 0); // set the cursor to column 0, line 0
  lcd.print("     adeept     ");// Print a message of "Temp: "to the LCD.

  lcd.setCursor(0, 1); // set the cursor to column 0, line 0
  lcd.print("  Temp: ");// Print a message of "Temp: "to the LCD.
  lcd.print(tempC);// Print a centigrade temperature to the LCD.
  lcd.print(" C  "); // Print the unit of the centigrade temperature to the LCD.
  delay(500);
}



Step 3: Compile the program and upload to Arduino UNO board

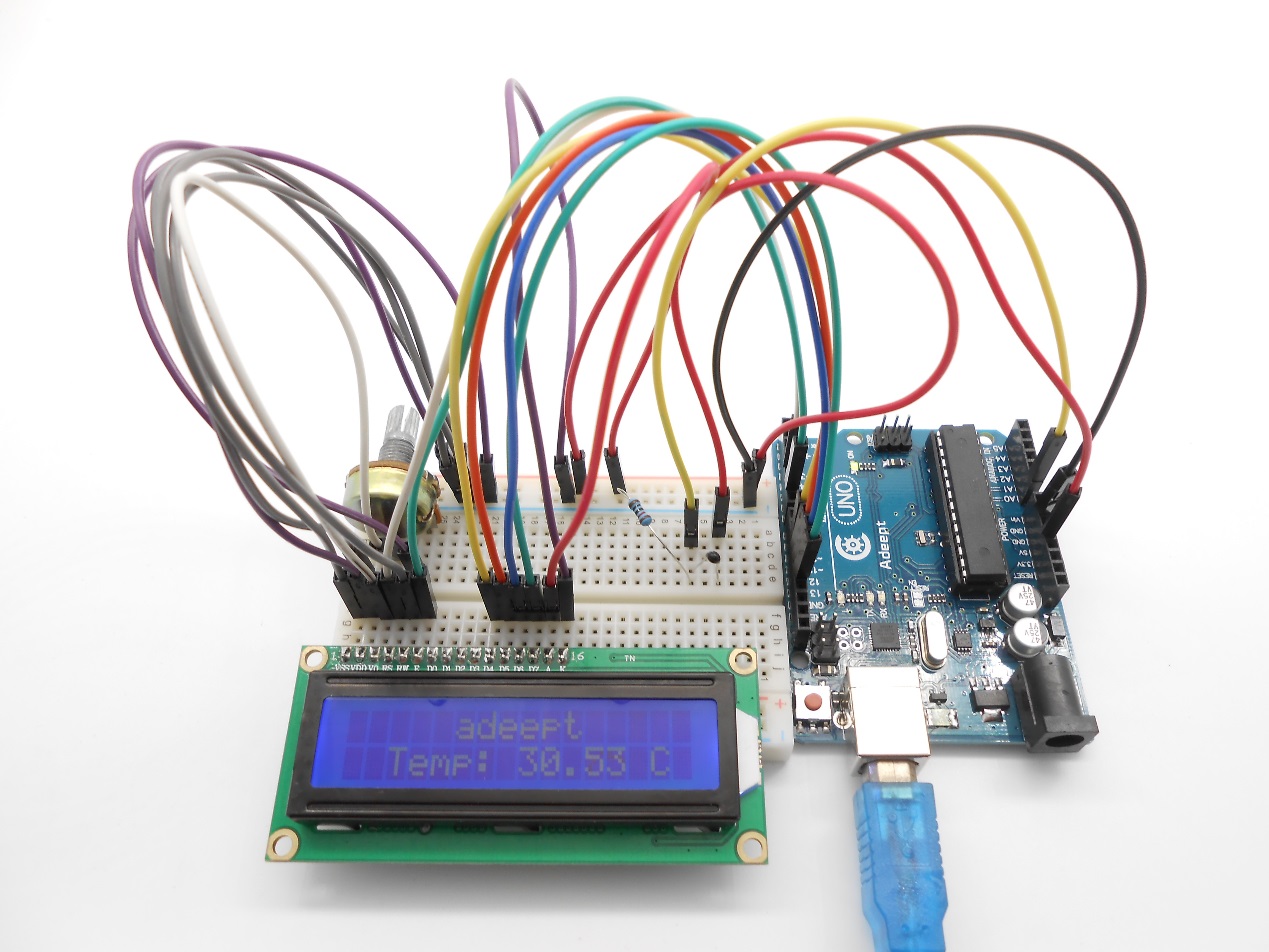

Now, you can see the temperature collected by thermistor on the LCD1602.



Summary

After this lesson, you may have learned to use a thermistor to measure the temperature. Next, you can use it to make some interesting applications.
