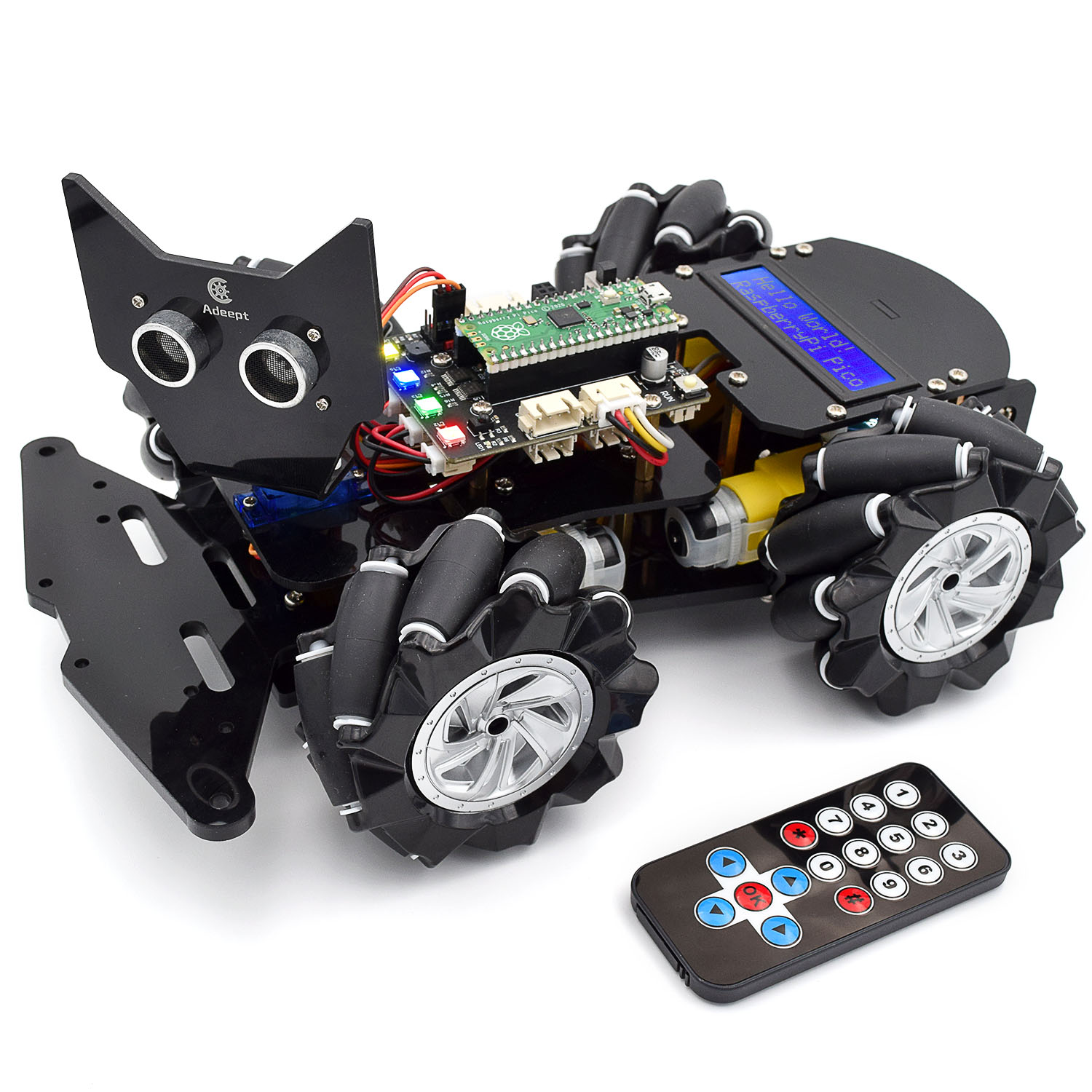

Adeept 4WD Omni-directional Mecanum Wheels Robotic Car Kit for Raspberry Pi Pico DIY STEM Remote Controlled Educational Robot Kit with LCD1602
It is developed based on the Raspberry Pi Pico, using MicroPython as the programming language, the code is easy to read and easy to modify, it is the best choice for learning programming and robotics.
Item Code: ADR032
Original Price:
- Raspberry Pi Pico Robot Kits
- Smart Car Kits
- Pico Smart Car Kit
- Pico Kit
-
$ 63.99Quantity: 1
-
$ 12.99Quantity: 1
-
$ 27.49Quantity: 1
-
$ 18.49Quantity: 1
-
$ 9.45Quantity: 1
-
$ 13.79Quantity: 1
-
$ 14.79Quantity: 1
-
$ 12.49Quantity: 1
The select 0 products
$79.99
-
$ 63.99Quantity: 1
-
$ 79.99Quantity: 1
-
$ 94.99Quantity: 1
-
$ 94.99Quantity: 1
-
$ 69.99Quantity: 1
-
$ 89.99Quantity: 1
-
$ 27.99Quantity: 1
The select 0 products
$79.99
-
$ 94.99Quantity: 1
-
$ 63.99Quantity: 1
-
$ 12.99Quantity: 1
-
$ 12.49Quantity: 1
The select 0 products
$79.99
-
$ 63.99Quantity: 1
-
$ 14.79Quantity: 1
-
$ 12.49Quantity: 1
-
$ 7.99Quantity: 1
-
$ 12.99Quantity: 1
-
$ 27.49Quantity: 1
-
$ 18.49Quantity: 1
The select 0 products
$79.99
- Description
About this item
- This Omni-directional Mecanum Wheels Robotic Car Kit is designed for teens to learn to coding, building and programming. It is developed based on the Raspberry Pi Pico, using MicroPython as the programming language, the code is easy to read and easy to modify, it is the best choice for learning programming and robotics.
- 4WD Omni-directional wheels and DC Motor robotic car uses the latest mecanum wheels for omnidirectional movement and allow your robotics to not only travel forward and backward, but also sideways and diagonally((Left/Right Parallel Shift,Forward/Backward,Upper Left/Right Diagonal shift,Lower Right/Left Diagonal Shift). Perfect for tight spaces.

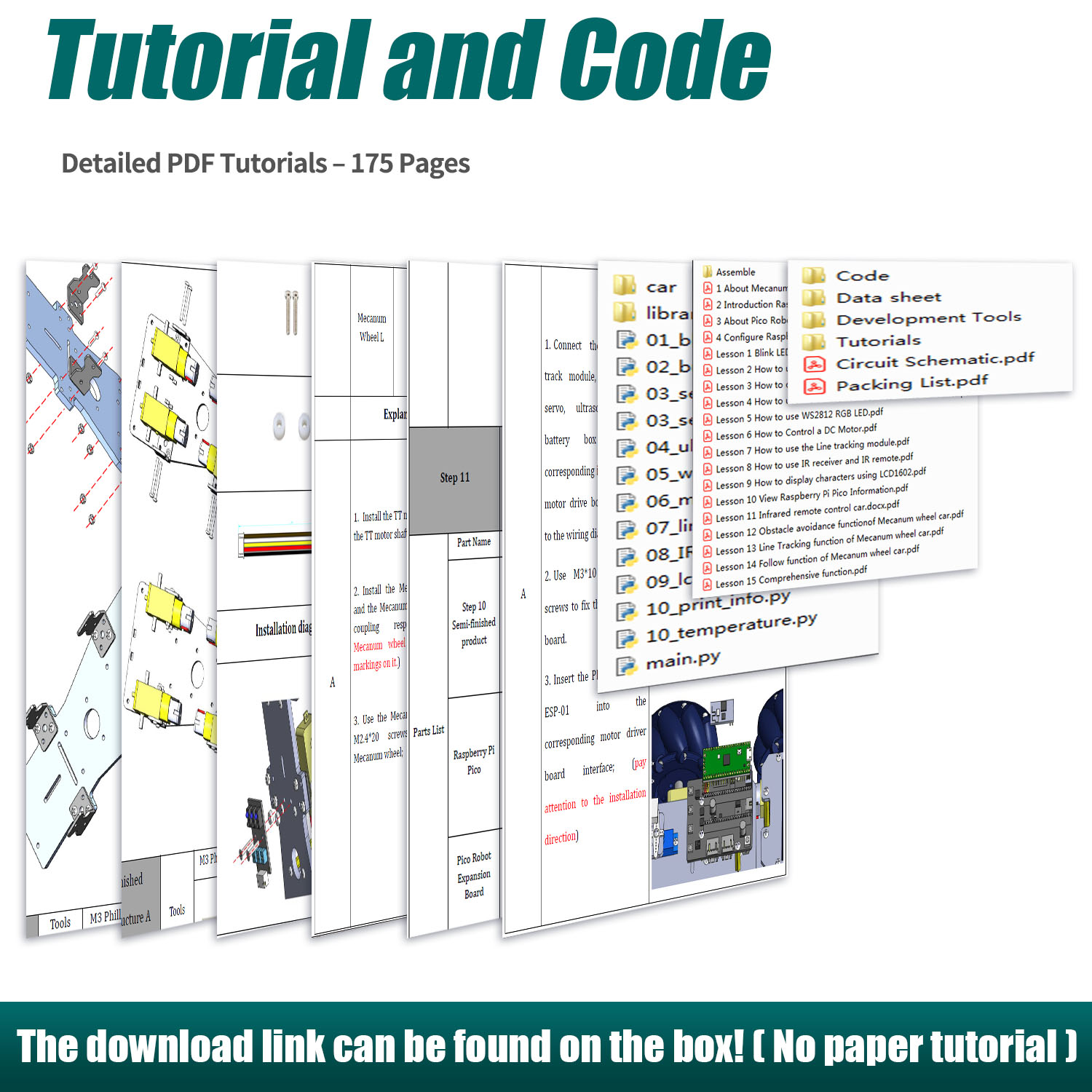

- Easy to Assemble and Build - Detailed tutorials(175 Pages, 21 Lesson) and complete code are provided. The download link can be found on the card in the box (Paper tutorials are NOT available as the tutorials are updated frequently).

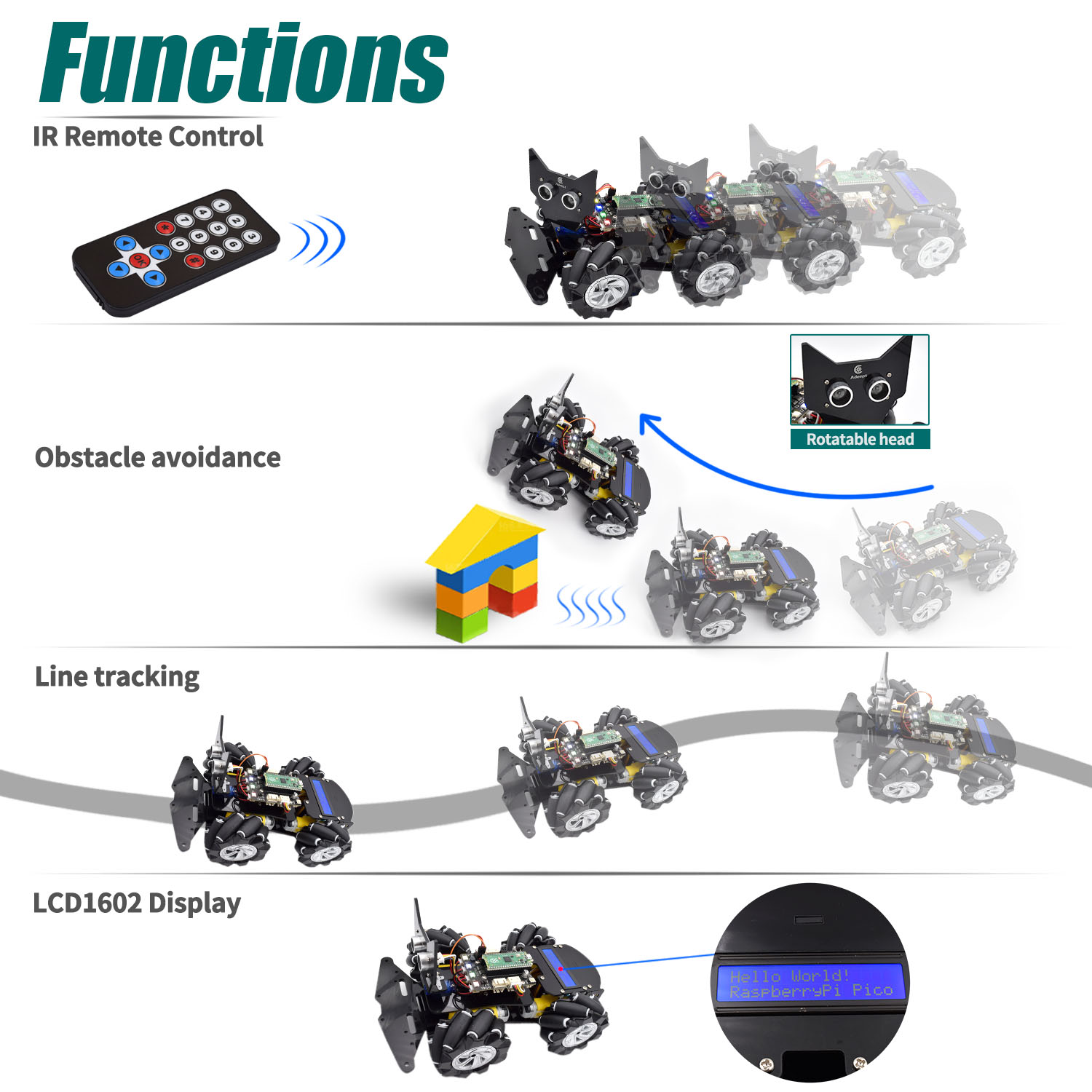

- Various Control Methods - IR Remote Control, Obstacle Avoidance, Line Tracking.
- This kit comes with a ESP8266 Wi-Fi module, you can program to control this smart car by APP.
Important Tips:
This kit is loose pieces, you need to assemble it yourself.
Download Tutorials:
https://www.adeept.com/learn/detail-68.html
Lessons:
0001 Adjust the initial angle of the servo
0002 Assemble
001 About Mecanum Wheel Car
002 Introduction Raspberry Pi Pico
003 About Pico Robot Expansion Board
004 Configure Pico operating environment
01 Blink LED
02 Buzzer
03 Servo Motor
04 Measure Distance
05 WS2812 RGB LED
06 How to Control a DC Motor
07 Line Tracking
08 How to use IR receiver and IR remote
09 I2C LCD1602
10 View Raspberry Pi Pico Information
11 IR Remote Control Car
12 Obstacle Avoidance
13 Line Tracking
14 Follow
15 Comprehensive Function
Package List:
1 Set Structure Parts(Acrylic)
1x Raspberry Pi Pico
1x Pico Robot Expansion Board
1x I2C LCD1602 Display
1x Ultrasonic Module
1x 3CH Line Tracking Module
1x ESP8266(ESP-01) Module
1x IR Remote Control
4x TT Motor
4x Mecanum Wheel(2R + 2L)
1x Servo Motor
1x Battery Holder
1x Micro USB Cable
Other Necessary Accessories(Cables, Nuts, Screws, Copper Standoffs, Nylon Standoffs, Tools, etc.)
You May Like
Customer Reviews
Recent Reviews
- BySarita
- Jul 04, 2023

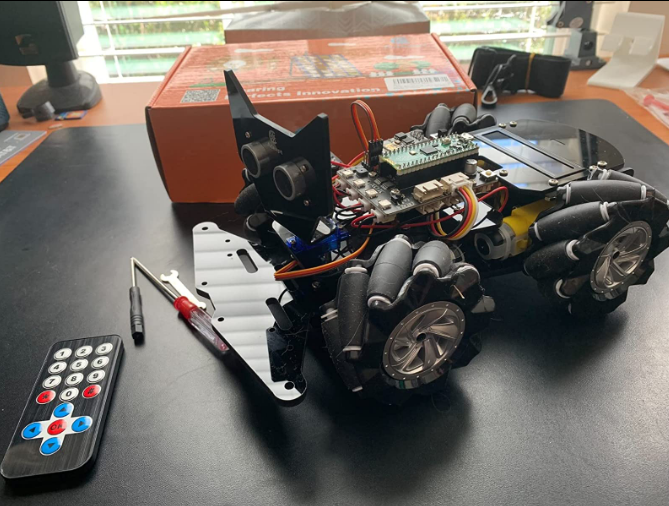

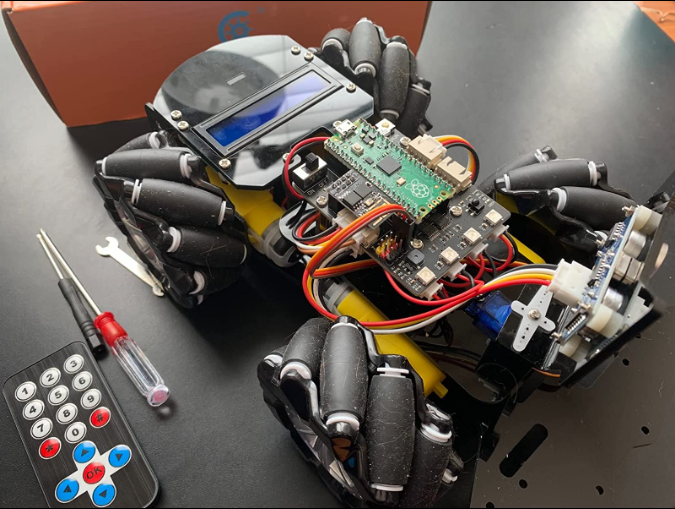

This wasn't easy to assemble but my son and I had fun working on this project together. This is his second STEM kit and this only encourages him to want to assemble more of these. This is a great gift and not too difficult to assemble.
- ByK. Williby
- Senior Member
- Mar 31, 2023
This is a really fun and somewhat difficult build. Lots of different parts, and a wide array of hardware. This is definitely not a snap-together build, so be prepared to sort through different nuts, screws, standoffs and other tiny parts. The acrylic is good quality, and the components are par for the course. The instructions are really great, though it takes a minute or two to figure out where to start exactly. I've done quite a few builds of my own, and these build instructions are super descriptive, and very clear. The kit comes with everything you "need" including tools, which are pretty good. The included phillips-head is a little narrow and you could strip out screw heads if you're not careful.
The one and only thing that I don't like about this kit, and many others like it, is that it is meant to be used to learn coding, yet very little coding is actually taught. You learn how to use the coding interface (Thonny in this case), but 90% of the coding is copy and paste, or just loading the already-prepared code into the Pi. This is fine if you intend to focus on the hardware, and aren't really looking to walk away from this experience knowing a great deal about Python, but I would've liked to see more explanation for what is going on in the coding sequence.
Overall, this is a really fun build. There is a lot you can tinker with once you've completed the tutorial, and in the end, you have a Raspberry Pi Pico that you can pop off and use in a different project if you so choose. If you take it upon yourself to play around with Python, you can really get creative with the parts and components in this kit. Definitely recommend it.
The one and only thing that I don't like about this kit, and many others like it, is that it is meant to be used to learn coding, yet very little coding is actually taught. You learn how to use the coding interface (Thonny in this case), but 90% of the coding is copy and paste, or just loading the already-prepared code into the Pi. This is fine if you intend to focus on the hardware, and aren't really looking to walk away from this experience knowing a great deal about Python, but I would've liked to see more explanation for what is going on in the coding sequence.
Overall, this is a really fun build. There is a lot you can tinker with once you've completed the tutorial, and in the end, you have a Raspberry Pi Pico that you can pop off and use in a different project if you so choose. If you take it upon yourself to play around with Python, you can really get creative with the parts and components in this kit. Definitely recommend it.
- ByA Y G
- Mar 31, 2023
This is a great little kit for the robot curious. It took me a couple of hours to put it together. The instructions were really good and really clear. In the whole thing, I think I only found one discrepancy, which in a kit this large, a kit this complicated, is kind of hard to believe. The discrepancy I found was in how the servo motor bracket was attached to the sonar mount. In the instructions, it shows four holes on each side and you insert two screws on either side. In the kit, there are 6 holes on each side, and you have two extra screws. I still just installed 2 on each side, because they were really really small and my old eyes and fat finger were having hard time with those screws. The sonar assembly was the hardest part of the whole thing, because of the little teeny tiny parts.
When assembling I recommend you find a smooth (non carpeted) surface, low to the ground, aka not on a table, or have some sort of damper to keep little tiny parts that you will drop from bouncing off to who knows where.
I was really surprised by the detail and the quality of the installation instructions.
Then upon completing it and going into the setup, and seeing all the little great lessons about Micro Python and programming. They all looked to be very useful too. That is another thing about this kit. A lot of kits like this, you are going to find come with an Arduino and you program them with C/C++. This comes with a Pi Pico and you program it with Micro Python. So, if you are looking for something to transition, or if you have already done something with Arduino and might be looking for something else to try, this could be a great place to start.
As for the components, they are all pretty standard components. But if you went out and sourced them all yourself, which you could do, when all is said and done, you probably would have spent as much as this kit. Just the wheels would be $30. Just the motors would be $10. Just the Pi would be $10.
So to get all the parts already sourced for you, and put in a nice kit, and a nice, well designed laser cut chassis to assemble it all, accompanied by good instructions, and lessons. I think it is a nice little kit. Even little details, like using brass standoffs instead of plastic. Little things like that impressed me. They didn't seem to go cheap in places where they could have easily chosen to do so.
It is also a great introduction to mecanum wheels. Some similarly priced mecanum wheel robot kits on Amazon don't even include the electronics. They are a lot more do it yourself. This is more we will do it all for you and hold your hand as you go.
I would recommend it. This would be great for a parent to work on with their younger kid, at the end of which the kid has a really cool toy, that they actually put together themselves, or to hand off to a high schooler, or even a middle schooler to tackle on their own.
When assembling I recommend you find a smooth (non carpeted) surface, low to the ground, aka not on a table, or have some sort of damper to keep little tiny parts that you will drop from bouncing off to who knows where.
I was really surprised by the detail and the quality of the installation instructions.
Then upon completing it and going into the setup, and seeing all the little great lessons about Micro Python and programming. They all looked to be very useful too. That is another thing about this kit. A lot of kits like this, you are going to find come with an Arduino and you program them with C/C++. This comes with a Pi Pico and you program it with Micro Python. So, if you are looking for something to transition, or if you have already done something with Arduino and might be looking for something else to try, this could be a great place to start.
As for the components, they are all pretty standard components. But if you went out and sourced them all yourself, which you could do, when all is said and done, you probably would have spent as much as this kit. Just the wheels would be $30. Just the motors would be $10. Just the Pi would be $10.
So to get all the parts already sourced for you, and put in a nice kit, and a nice, well designed laser cut chassis to assemble it all, accompanied by good instructions, and lessons. I think it is a nice little kit. Even little details, like using brass standoffs instead of plastic. Little things like that impressed me. They didn't seem to go cheap in places where they could have easily chosen to do so.
It is also a great introduction to mecanum wheels. Some similarly priced mecanum wheel robot kits on Amazon don't even include the electronics. They are a lot more do it yourself. This is more we will do it all for you and hold your hand as you go.
I would recommend it. This would be great for a parent to work on with their younger kid, at the end of which the kid has a really cool toy, that they actually put together themselves, or to hand off to a high schooler, or even a middle schooler to tackle on their own.
