Product List

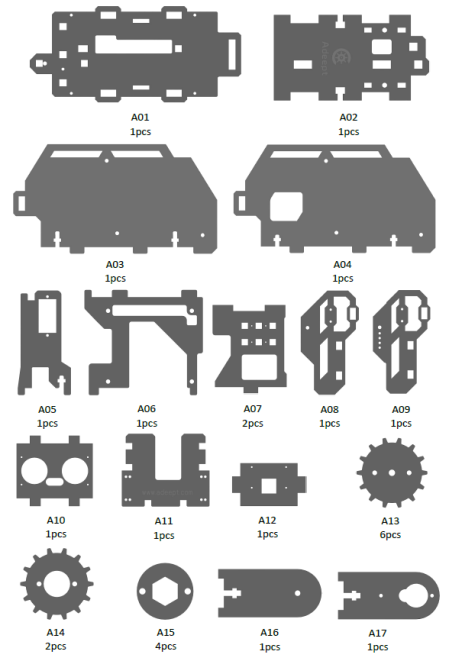

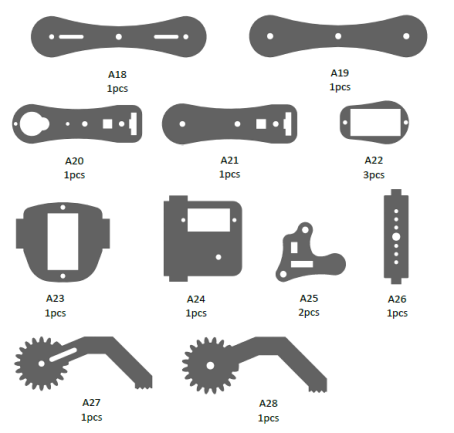

Acrylic Plates
|
|
The acrylic plates are fragile, so please be careful when assembling them in case of breaking. The acrylic plate is covered with a layer of protective film. You need to remove it first. Some holes in the acrylic may have residues, so you need to clean them before the use. |

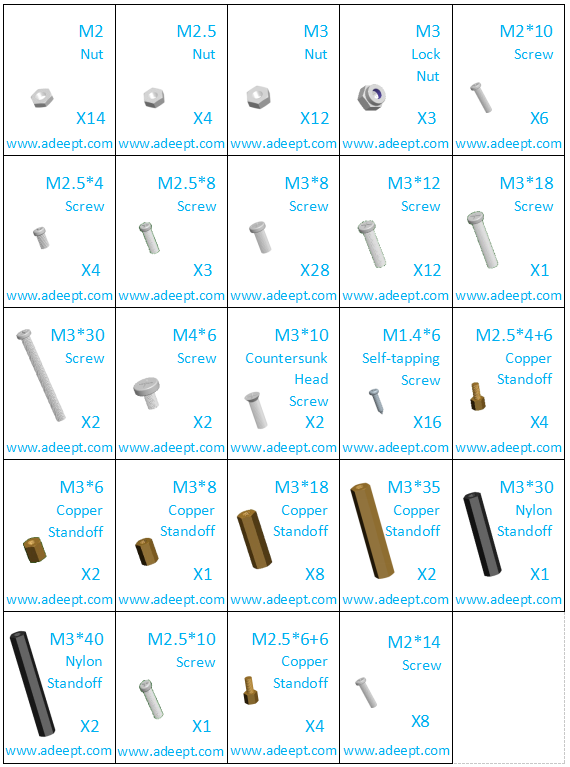

Machinery Parts
|
Transmission Parts
Servo x5
| GA12-N20 Gear Motor x2
|
Motor Seat Set x2
| |
S12D3 Coupling Set x2
| |

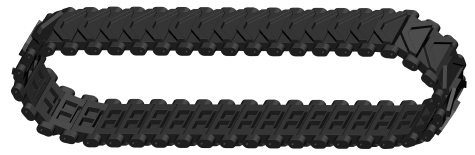

Track x2
| |
Electronic Parts
Adeept Motor HAT x1
| Raspberry Pi Camera x1
|
18650 Battery Holder Set x1
| Adeept Ultrasonic Module x1
|
3 Tracking Module x1
| WS2812 LED x4
|
Raspberry P1 Camera Ribbon(black) x1
| |
3-Pin Wire -A x3
| |
3-Pin Wire -B x1
| |
4-Pin Wire(White) x1
| |
5-Pin Wire(red) x1
| |
Servo Extension Cable x1
| |
| The Motor HAT circuit diagram is in the linked zip package: https://www.adeept.com/learn/detail-34.html | |
Tools
HexWrench-2.0mm X1
| Cross Screwdriver X1
| Cross Socket Wrench X1
|
Large Cross-head Screwdriver X1
| ||
Winding Pipe X1
| ||
You need to purchase the following components
Raspberry Pi x1
|
And the corresponding power cable of the Raspberry Pi version. Raspberry Pi version compatible with the product: 3B , 3B+ , 4B. |
